Περιγραφή

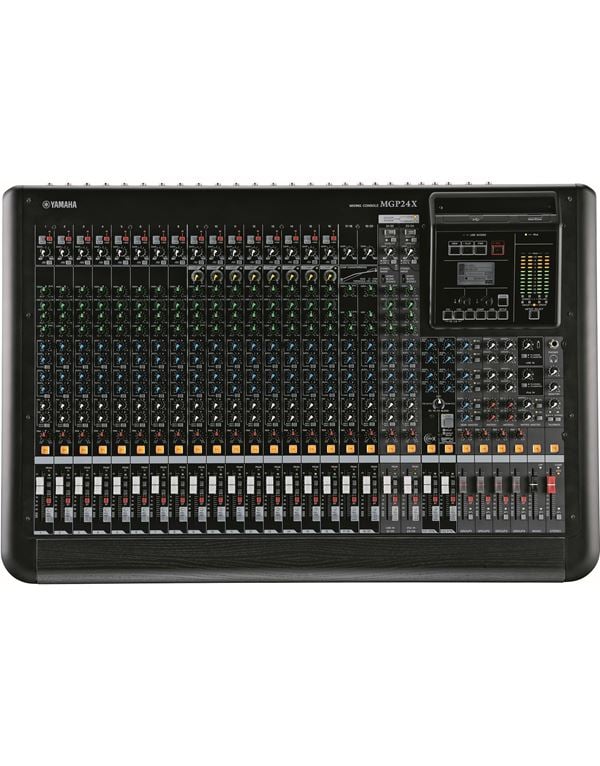

Αναλογική Κονσόλα με Effect,κατάλληλη για πλήθος εφαρμογών (DJ’s, PA, ζωντανές εμφανίσεις κτλ.). Διαθέτει 16 Mic Inputs με 48V Phantom Power και HPF ανά κανάλι, 6 AUX Sends + 2 FX Sends, 4 GROUP Buses + ST Bus, 2 Matrix out, 1 Mono out.
| Mixing capability | Mixing channels | 24 Line Inputs (16 mono and 4 stereo) |
|---|
| GROUP | 4 GROUP Buses + ST Bus |
|---|
| AUX | 6 AUX Sends + 2 FX Sends |
|---|
| MATRIX | 1 Matrix out |
|---|
| On-board processors | FX1:REV-X(8 PROGRAM, PARAMETER control)/ FX2:SPX(16 PROGRAM, PARAMETER control) |
|---|
| I/O | Mic inputs | MIC: 16 (INPUTS HPF: 100Hz 12dB/oct) |
|---|
| Phantom power | 48V phantom power per channel |
|---|
| Line inputs | LINE: 16 mono + 4 stereo, CH INSERT: 16 RETURN: 1 stereo |
|---|
| Digital I/O | USB Device, iPod / iPhone |
|---|
| Total harmonic distortion | 0.02% (20Hz-20kHz@ +14dBu) |
|---|
| Frequency response | +0.5/-1.0dB 20Hz – 20kHz, refer to the nominal output level @1kHz |
|---|
| Hum & noise level | Equivalent input noise | -128 dBu Equivalent Input Noise |
|---|
| Residual output noise | -94 dBu Residual Output Noise |
|---|
| Crosstalk | -74dB @ 1kHz |
|---|
| Power requirements | 100-240V 50Hz/60Hz |
|---|
| Power consumption | 86W max |
|---|
| Dimensions | W | 819mm (32.2′) |
|---|
| H | 169mm (6.7′) |
|---|
| D | 565mm (22.2′) |
|---|
| Net weight | 15.5kg (34.2lb) |
|---|
