Περιγραφή

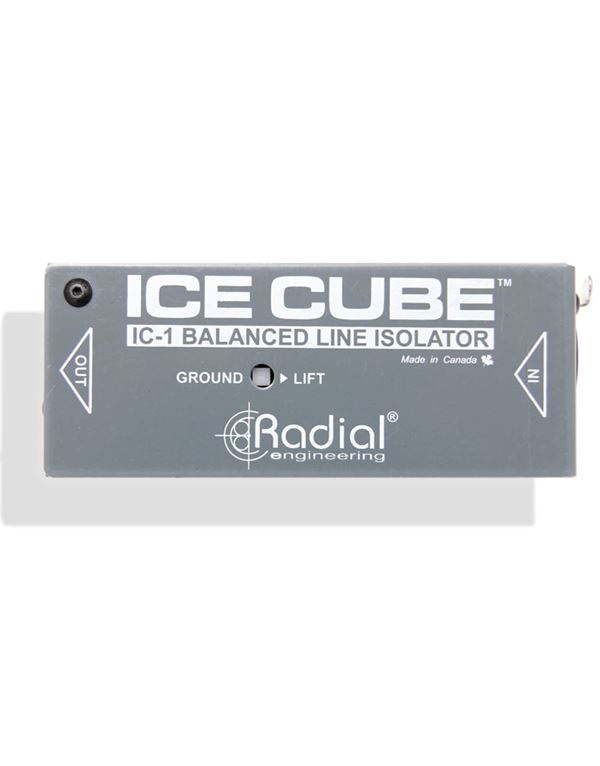

RADIAL Ice Cube Balanced Line Isolator πετάλι που ελαχιστοποιεί το θόρυβο από τη γείωση. Διαθέτει εύρος συχνότητας 20 – 18.000 Hz, XLR in/out, εναλλασόμενο GND/Lift.
Χαρακτηριστικά:
| Audio Circuit Type | Passive, transformer based |
| Frequency Response | 20 Hz to 20 kHz (± 1 dB) |
| Dynamic Range | >135 dB |
| Maximum Input | 15 dBu |
| Gain | 0 dB / -5.7 dB 10 k / 600 ohm load |
| Clipping Level | 25 dBu |
| Equivalent Input Noise | 110 dBu |
| Distortion | Intermodulation Distortion: 0.002% @ -10 dBu Total Harmonic Distortion: <0.0006% 1 kHz @ -10 dBu |
| Input Impedance | 8.66 kOhms with 10 kOhm load |
| Output Impedance | 600 ohms nominal |
| Transformer | Custom-made Eclipse |
| Ground Lift | Disconnects pin-1 at XLR output |
| XLR Configuration | AES standard: Pin-1 (Ground), Pin-2 (+), Pin-3 (-) |
| Environmental Conditions | For use in dry locations only between 41 to 104°F (5 to 40°C) |
| Construction | 16-gauge steel chassis & outer shell |
| Finish | Powder Coat |
| Dimensions | 4.2 x 1.32 x 1.6″ (107 x 34 x 41 mm) |
| Weight | 0.4 lb (0.18 kg) |
